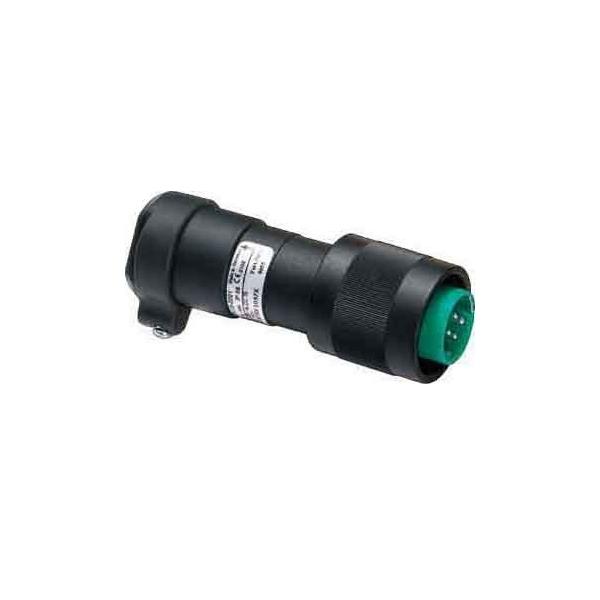

Stahl Stecker 8591/471-10-3001 154004

Produktbeschreibung

Stahl Stecker 8591/471-10-3001

Hersteller:Stahl
Bezeichnung:Stecker
Typ:8591/471-10-3001
Netzspannung:250 V
Nennstrom:6 A
Polzahl:5
Spannung nach EN 60309-2:sonstige
Uhrzeit-Stellung:10 h
Kennfarbe:blau
Ausführung:Stecker
Werkstoff des Gehäuses:Messing
Kabeleinführung:gerade
Schutzkontakt:ja
Für Ex-Zone Gas:1, 2
Für Ex-Zone Staub:21, 22
Ex-Klasse:IIC

Stahl Stecker 8591/471-10-3001: weitere Details

R.STAHL Series 8591/1 and 8591/4 4-pole, explosion-protected miniCLIX plug connectors disconnect non-instrinsically safe circuits up to 250 V/10 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/couplers made of polyamide, nickel-plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices. miniCLIX plug connector, Plug, explosion-protected, Type : 8591/471-10-3001, AC rated operational voltage : 230 250 V, DC rated operational voltage : 0 V, Frequency Hz (for AC) : 50/60, Detailed number of poles : 4 P + PE, Coding (clock hour position) : 10, Recommended colour ring coding: Blue, Enclosure material : Nickel-plated brass, Application range (zones) : 1 , 2 , 21 , 22, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC 60 °C Db, min. ambient temperature : -55 °C, max. ambient temperature : +40 °C, Locking device present : No, Connection type : 1.5 mm2 crimp, For further information, see : r-stahl.com WebCode 8591A

Geliefert wird: Stahl Stecker 8591/471-10-3001, Verpackungseinheit: 1 Stk., EAN: 4046827050534
