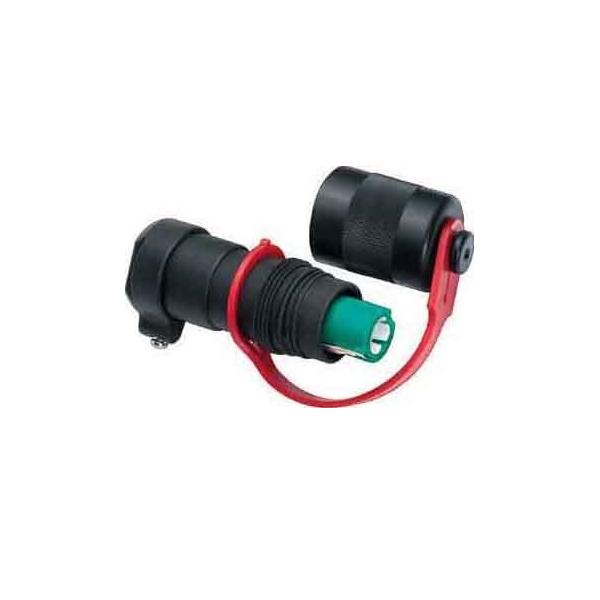

Stahl Kupplung 8591/136-08-0001 154028

Produktbeschreibung

Stahl Kupplung 8591/136-08-0001

Hersteller:Stahl
Bezeichnung:Kupplung
Typ:8591/136-08-0001
Netzspannung:24 V
Nennstrom:6 A
Polzahl:4
Spannung nach EN 60309-2:sonstige
Uhrzeit-Stellung:8 h
Kennfarbe:grau
Ausführung:Kupplung
Werkstoff des Gehäuses:Kunststoff
Kabeleinführung:gerade
Schutzkontakt:nein
Für Ex-Zone Gas:1, 2
Für Ex-Zone Staub:21, 22
Ex-Klasse:IIC

Stahl Kupplung 8591/136-08-0001: weitere Details

R.STAHL Series 8591/1 and 8591/4 4-pole, explosion-protected miniCLIX plug connectors disconnect non-instrinsically safe circuits up to 250 V/10 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/couplers made of polyamide, nickel-plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices. miniCLIX plug connector, Coupling, explosion-protected, Type : 8591/136-08-0001, AC rated operational voltage : 0 V, DC rated operational voltage : 24 V, Detailed number of poles : 4 P, Coding (clock hour position) : 8, Recommended colour ring coding: Grey, Enclosure material : Plastic, Application range (zones) : 1 , 2 , 21 , 22, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC 60 °C Db, min. ambient temperature : -55 °C, max. ambient temperature : +40 °C, Locking device present : No, Connection type : Spring clamp terminal 1.5 mm2, For further information, see : r-stahl.com WebCode 8591A

Geliefert wird: Stahl Kupplung 8591/136-08-0001, Verpackungseinheit: 1 Stk., EAN: 4046827080340
