Produktbeschreibung

Rockford Fosgate HD14CVO-STAGE2 | Stage 2 audio kit for 2015-up für Harley-Davidson® CVO Road Glide® or 2014-up CVO Street Glide® touring bikes

Awesome audio for your Road Glide CVO or Street Glide CVO

Ready to upgrade the sound on your 2015-up Harley-Davidson® CVO Road Glide® or 2014-up CVO Street Glide®? Go big with Rockford Fosgate',s Power Series Stage 2 kit. Designed to fit your Harley, this speaker and amp package features fairing and bag lid speakers, plus a compact, weather-resistant 4-channel amplifier with an installer-friendly amplifier kit. It',s a big step up in audio for your Harley.

Phenomenal sound for the fairings

The Stage 2 package includes two Rockford Fosgate TMS65 6-1/2", speakers that will fit right into the fairing locations on your Road Glide or Street Glide. These rugged, weather-resistant coaxial speakers will really boost your bike',s audio quality, packing a lot of sonic punch into a rugged, road-ready design. The big VAST (Vertical Attach Surround Technique) surrounds give the speakers 25% more cone area without compromising ease of installation. The result? You',ll get more performance from a smaller speaker, which is pretty much the ideal for a motorcycle.

Bring big sound to your bags

Rockford Fosgate',s TMS57 speakers are designed to replace the existing 5",x7", speakers in Harley-Davidson BOOM!™ Audio Stage-I and Stage-II bag lids. These rugged, weather-resistant coaxial speakers add a lot of punch to the system, and factory Harley-Davidson connectors make installation easy.

A compact, powerful amp

The Power Series TM400X4ad 4-channel amplifier uses Rockford Fosgate',s proprietary Class AD technology to draw big power with less current draw from your bike',s electrical system. It',s made for the road, with conformal-coated circuitry and stainless steel hardware. This compact amp rocks hard and runs cool, even when it',s tucked into a tight space. You',ll install the amp using the included RFK-HD14 kit which includes everything you need for the job, from wiring harnesses right down to the screws.

Compatibility note: This kit is designed to work with 2015-up Harley-Davidson® CVO Road Glide® or 2014-up CVO Street Glide® touring bikes only.

Important Note: All 2014-up Harley-Davidson radios use a “high fidelity” EQ curve which will cause severe distortion in any audio upgrade. You',ll need to get your radio reflashed by your Harley-Davidson Dealer.

READ LESS

Product highlights:

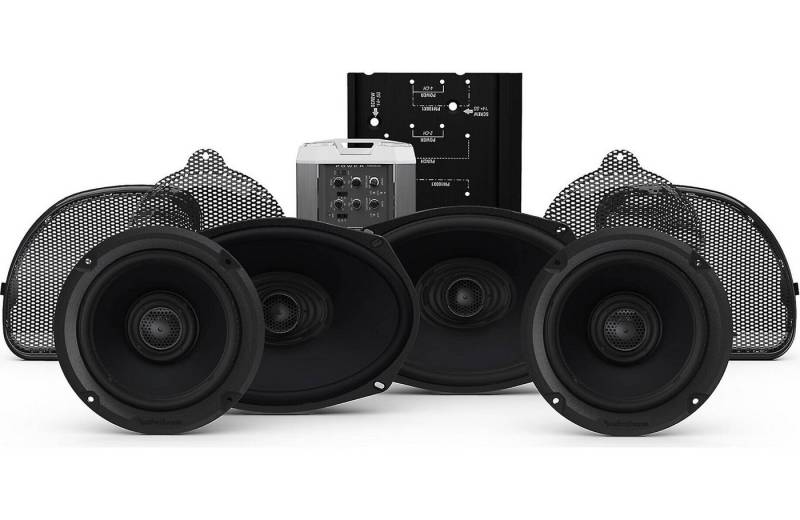

system includes two 6-1/2", fairing speakers, two 5",x7", bag lid speakers, a 4-channel amp, and an amp wiring kit
designed for 2015-up Harley-Davidson Road Glide CVO and 2014-up Street Glide CVO motorcycle

Rockford Fosgate TMS65 6-1/2", full-range speakers

designed for your Harley',s fairing speaker locations
Element-Ready design is weather- and water-resistant
power handling: 75 watts RMS (150 watts peak)

Rockford Fosgate TMS57 5",x7", 2-way speakers

designed to fit your Harley',s hardshell bags
Element-Ready design is weather- and water-resistant
handles up to 100 watts RMS (200 watts peak)

Rockford Fosgate TM400X4AD Power Series marine/powersports 4-channel amplifier

Class AD amp technology
100 watts RMS x 4 at 4 ohms (400 watts peak)
conformal-coated circuit board — suitable for power sports and marine applications
twin cooling fans and real-time thermal sensing
includes Rockford Fosgate RFK-HD14 amplifier kit
MFR # HD14CVO-STAGE2

What',s in the box:

Rockford Fosgate HD14CVO-STAGE2 owner',s manual

This package contains 4 individually boxed items:
TM400X4AD:
4-Channel amplifier
Two 7", Speaker output harnesses (Molex plug on one end and bare wire on the other)
Two 14", Input harness (Molex plug on one end and female stereo RCA jacks on the other)
Setup disk (CD-ROM)
Quickstart guide
Amplifier Performance Verification Certificate
TMS65:
Two 2-way speakers
2 Street Glide grilles
2 Road Glide grilles
2 Tour-Pak grilles
Installation manual (English/ French/ Spanish/ German/ Italian)
TMS57:
Two 2-way speakers
Eight 3/4", Screws
2 Logo badges
Installation manual (English/ French/ Spanish/ German/ Italian)
RFK-HD14:
1 Mounting bracket
1 Heatsink
34", T-harness
65", Power/ground harness w/ inline 60A Maxi fuse
20", Amplifier input harness
2 Amp output Y-adapters
5 Amp bypass plugs
4 Spacers w/ 3M adhesive backing
Eight 8", wire-ties
Two 16mm bolts
Four 18mm counter-sunk screws
Four 10mm counter-sunk screws
Four 8mm hex-socket screws
2 Flange-nuts
Installation guide

Dieses Set besteht aus folgenden Teilen:

1. Rockford Fosgate TMS65 | Lautsprecher für vordere Verkleidung und Tour Pak Harley-Davidson

Lautsprecher für vordere Verkleidung und Tour Pak Harley-Davidson™ 16,5 cm
Road Glide* (2015+,)
Street Glide* (2014+,)Leistung 75 W RMS / 150 W max.
91 dB (1W/1m)
2 x 16,5 cm Power Koax Lautsprecher
25 mm Hochtöner • Santopren VAST Sicke
Kompatibel mit factory Boom! Audio &amp, Boom! und Audio Stage-1 systems (non-biamp speakers).
* Die Installation bei CVO™ und Screaming Eagle™ Modellen erfolgt nicht per Plug &amp, Play und muss geändert werden.

2. Rockford Fosgate TM400X4AD - MARINE 4-Kanal Power Verstärker ENDSTUFE mit 400 Watt RMS

Technische Daten:

4-Kanal Class AD Verstärker (800 W)
4 x 100 / 100 Watt RMS @, 4 / 2 Ohm oder 2 x 200 Watt RMS gebrückt @, 4 Ohm
4 x 200 / 200 Watt RMS @, 4 / 2 Ohm oder 2 x 400 Watt RMS gebrückt @, 4 Ohm
High-/Lowpass 50-250 Hz
0-18 dB Bass Boost
0-14 dB Treble Boost
C.L.E.A.N.-Setup
High Level Inputs mit Auto Turn On
Optional PLC2 Bass-Remote mit Clipping-LED
75% Wirkungsgrad
Abmessungen: 108 x 41 x 211 mm

3. Rockford Fosgate RFK-HD14 | Verstärker-Einbau-Satz für Harley-Davidson

Dieses komplette Kit enthält einen Kühlkörper, eine Halterung und alle Kabelbäume die für den Einbau des Power Marine TM400X4ad-Verstärkers für Harley-Davidson-Motorräder ab Baujahr 2014 benötigt werden.

4. Rockford Fosgate TMS57 | Oval Lautsprecher für Bag Lid Harley-Davidson™ 5x7",

Merkmale:
