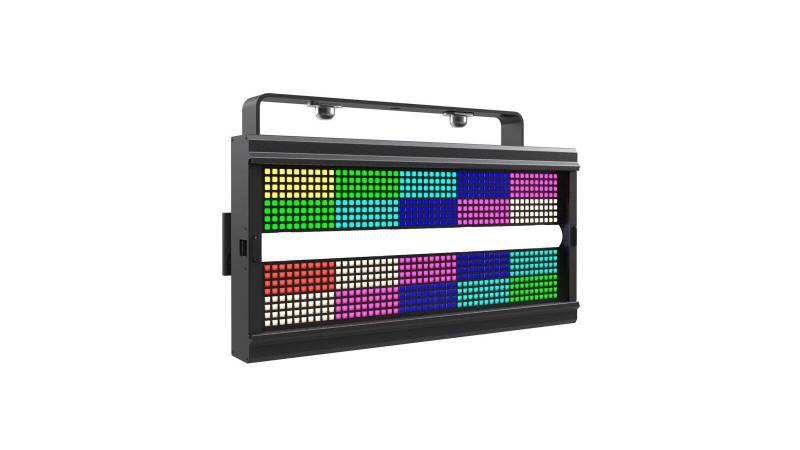

Jolt Panel FX2

Produktbeschreibung

SPECIFICATION   Light Source: • 800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs • 73° Beam Angle • 111° Field Angle • Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6900-7400K • CRI: 69.4 • 50,000 Hour Average LED Life   Features: • 40 x RGB LED zones  • 6 x Cool White LED zones • 25 built-in RGB LED Program Macros • 9 built-in Cool White LED Program Macros    Control: • Control Protocol: DMX, Aria X2 and RDM • 10 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes   • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2) • Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve) • 0-100% Smooth Dimming • Strobe, shutter & pulse control  • Max Strobe Rate 20Hz. Min Strobe Rate: 1Hz. • With Wired Digital Communication Network • Display: OLED display with 4-button touch menu   Connections: • Data: IP20 Indoor locking 5-pin DMX In/Out • Power: IP20 Indoor locking power In/Out    Electrical: • 100-240V 50Hz/60Hz (Auto Sensing) • Max Power Consumption: 214W @120V., 208W @230V. • Max Power Link: 6pcs @120V., 12pcs @230V.+ • Fuse Protected: T5A/250V Glass Fuse (5*20MM)   Dimensions / Weight: • Length: 134.2mm • Width: 417mm • Height: 260.5mm • Weight: 6.2 kg   What’s Included: • 1x 1.83m Indoor Power locking power cable • 1x Frost Filter   Optional Accessories: • 180mm Omega Bracket • JPFXBLKF (Black Filter) • JPFXLINF (Linear Effect Filter)   Approvals and Ratings: • CE • cETLus (Pending) • IP20   Specifications subject to change without notice.
