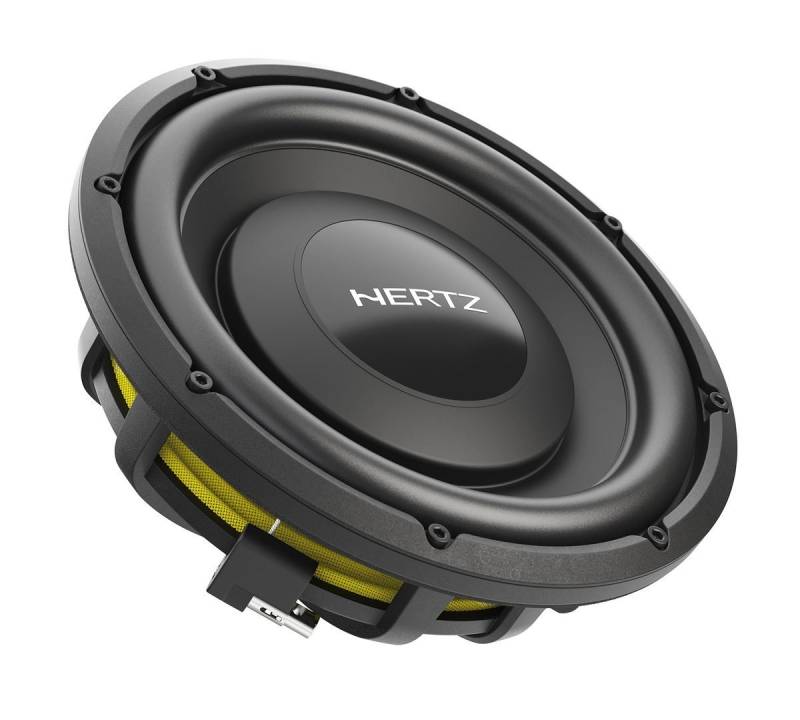

Hertz MPS 250 S4 25cm Flach-Subwoofer 4-Ohm Auto-Subwoofer (300 W, Hertz MPS 250 S4 - 25cm Flach-Subwoofer 4-Ohm)

Produktbeschreibung

Hertz MPS 250 S4 - 25cm Flach-Subwoofer | 4-Ohm

MPS 250 S4 250 (10) mm (in.) | 82,6 (3.25) mm (in.) | Subwoofers | 1000 W | 4 Ohm | Single Voice Coil

Mille PRO shallow subwoofers have been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.

MPS 250 S4 is optimized to work in ultra-compact sealed boxesstarting from only 14 Lt (0.49 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.

Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.

This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.

Technical Specs

Size mm (in.)250 (10)Power Handling - Continuous W500Power Handling - Peak W1000Impedance Ohm4Depth mm (in.)82,6 (3.25)Voice Coil TypesingleNo Filter ComponentSubwoofersVoice Coil Ø38 (1.5)Frequency Response Hz25 - 400Magnet size D x d x h mm (in.)134 x 55 x 36 (6.28 x 2.17 x 1.42)Weight of one component kg (lb.)5,11 (11.27)MagnetHigh density flux ferriteConePolypropyleneXmech mm (in.)20 (0.79)

Electro-acoustic Specs

D mm216,6Xmax mm16,8Re Ohm3,3Fs Hz29Le mH3,65Vas I21,2Mms g234Cms mm/N0,11BL T*m17,3Qts0,48Qes0,52Qms5,6Spl dB83,5
