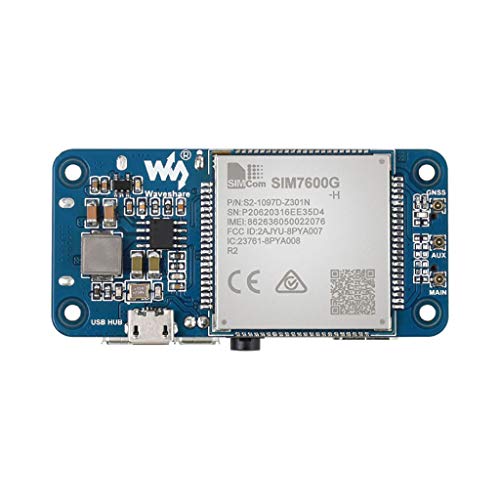

SIM7600G-H 4G HAT (B) for Raspberry Pi Series Board, Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning, Global Band

Produktbeschreibung

Connected via pogo pin or MicroUSB connector: Dedicated pogo pin for Raspberry Pi Zero/Zero W; MicroUSB connector for other Raspberry Pi boards or PC Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support; USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.; Supports GPS, BeiDou, Glonass, LBS base station positioning; Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT SIM card slot, supports 1.8V/3V SIM card; Onboard audio jack and audio decoder for making telephone call; 2x LED indicators, easy to monitor the operating status;Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Comes with development resources and manual (examples for Raspberry Pi): http://www.waveshare.com/wiki/SIM7600G-H_4G_HAT_(B)
