Waveshare UPS HAT (E) for Raspberry Pi 5/4B/3B+, Supports 4× 21700 Li Batteries (NOT Included), Bi-Directional Fast Charging, 5V 6A Output, Pogo Pins Connector

Produktbeschreibung

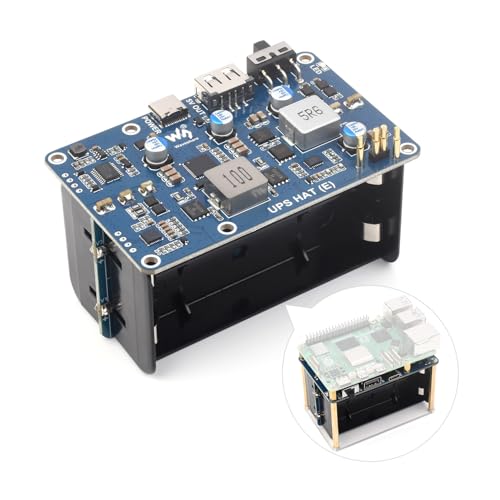

The UPS HAT (E) is an uninterruptible power supply (UPS) expansion board specially designed for Raspberry Pi series. Onboard battery fuel gauge IC, fast charging chip and high-power buck chip to realize higher power input and output. Supports monitoring the operating state of the HAT via the I2C interface. Adopts pogo pins connector design, compatible with Raspberry Pi 5 / 4B / 3B+. Supports displaying battery level on the system, easy to check the operating state of the HAT Onboard Type-C port with bi-directional fast charging, supports multiple charging input / output protocols such as PD3.0, up to 40W charging power. Onboard high-power buck chip for stable 5V 6A power output Onboard battery fuel gauge IC for reading battery voltage, current, power, remaining capacity and other parameters. Onboard MCU management, supports detecting power connection and booting the Pi Supports I2C bus communication for monitoring the operating status of Type-C port and batteries in real time. Supports 4× 21700 Li batteries (NOT included), larger capacity and longer battery life. Can provide with online development resources and manual
